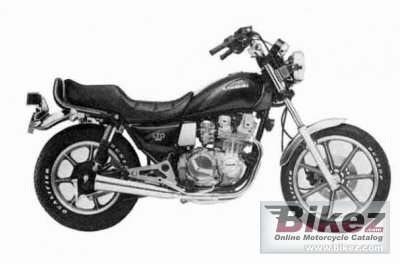

Kawasaki KZ 550 LTD 19841984 Kawasaki KZ 550 LTD specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Kawasaki KZ 550 LTD |
| Model year | 1984 |
| Category | Custom / cruiser |
| Rating | 3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 553.0 ccm (33.74 cubic inches) |
| Engine type | In-line four, four-stroke |
| Compression | 9.2:1 |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Teikei 26mm CV |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet plate |
| Exhaust system | 4 to 2 stainless pipes |
| Chassis, suspension, brakes and wheels | |
| Frame type | CrMo Steel |
| Rake (fork angle) | 29.0° |
| Front suspension | Telescopic |
| Front wheel travel | 109 mm (4.3 inches) |
| Rear suspension | Air shocks w/ oil damping |
| Rear wheel travel | 97 mm (3.8 inches) |
| Front tire | 100/90-19 |
| Rear tire | 130/90-16 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 195.0 kg (430.0 pounds) |
| Fuel capacity | 13.20 litres (3.49 US gallons) |
| Other specifications | |
| Color options | Black with red decals |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 84 Kawasaki KZ 550 LTD discussion group or the general Kawasaki discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Kawasaki. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 1984 Kawasaki KZ 550 LTD for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Kawasaki bike | |
Offroad capabilities for the 1984 Kawasaki KZ 550 LTD:  (36.9 out of 100)Click here for complete rating. |
|
