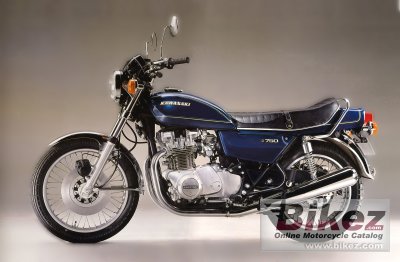

Kawasaki KZ750 19771977 Kawasaki KZ750 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Kawasaki KZ750 |
| Year model | 1977 |
| Type | Sport touring |
| Rating | 3.2 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 745.0 ccm (45.46 cubic inches) |
| Type of engine | Twin, four-stroke |
| Effect | 55.0 HP (40.1 kW)) @ 7000 RPM |
| Torque | 60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 3000 RPM |
| Maximum RPM | 7500 |
| Compression | 8.5:1 |
| Bore x stroke | 78.0 x 78.0 mm (3.1 x 3.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Mikuni BS 38 x 2 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Battery and coil |
| Lubrication system | Forced lubrication wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multi-disc |
| Exhaust system | Double stainless steel pipes |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel, double cradle |
| Rake (fork angle) | 26.5° |
| Trail | 105 mm (4.1 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 140 mm (5.5 inches) |
| Rear suspension | Swing arm |
| Rear wheel travel | 80 mm (3.1 inches) |
| Front tire | 3.25H-19 4PR |
| Rear tire | 4.00H-18 4PR |
| Front brakes | Single disc. Single piston floating |
| Diameter | 245 mm (9.6 inches) |
| Rear brakes | Single disc. Single piston floating |
| Diameter | 230 mm (9.1 inches) |
| Physical measures and capacities | |
| Dry weight | 218.0 kg (480.6 pounds) |
| Power/weight ratio | 0.2523 HP/kg |
| Seat height | 845 mm (33.3 inches) If adjustable, lowest setting. |
| Overall height | 1115 mm (43.9 inches) |
| Overall length | 2180 mm (85.8 inches) |
| Overall width | 815 mm (32.1 inches) |
| Ground clearance | 155 mm (6.1 inches) |
| Wheelbase | 1450 mm (57.1 inches) |
| Fuel capacity | 14.50 litres (3.83 US gallons) |
| Oil capacity | 4.00 litres (4.23 US quarts) |
| Other specifications | |
| Color options | Red |
| Starter | Electric & kick |
| Comments | European spec |
| Update specs | Report missing specs or required updates. |
