General information |
Model name
|

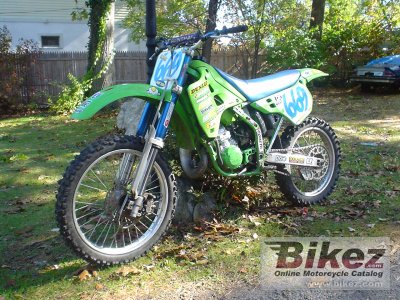

Kawasaki KX 125 |
Year of manufacture
|
1990 |
Type
|
Cross / motocross |
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
124.0 ccm (7.57 cubic inches) |
Type of engine
|
Single cylinder, two-stroke |
Output
|
37.8 HP (27.6 kW)) @ 11500 RPM |
Torque
|
24.5 Nm (2.5 kgf-m or 18.1 ft.lbs) @ 10500 RPM |
Compression
|
8.2:1 |
Bore x stroke
|
56.0 x 50.6 mm (2.2 x 2.0 inches) |
Fuel system
|
Carburettor |
Ignition
|
CDI |
Lubrication system
|
Petrol Mix (32:1) |
Gearbox
|
6-speed |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
25.5° |
Trail
|
108 mm (4.3 inches) |
Front suspension
|
Inverted Forks |
Front wheel travel
|
310 mm (12.2 inches) |
Rear suspension
|
Monoshock |
Rear wheel travel
|
330 mm (13.0 inches) |
Front tire
|
80/100-21 51 |
Rear tire
|
100/90-19 57 |
Front brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
190 mm (7.5 inches) |
Physical measures and capacities |
Dry weight
|
86.5 kg (190.7 pounds) |
Power/weight ratio
|
0.4370 HP/kg |
Overall height
|
1215 mm (47.8 inches) |
Overall length
|
2135 mm (84.1 inches) |
Overall width
|
815 mm (32.1 inches) |
Ground clearance
|
93 mm (3.7 inches) |
Wheelbase
|
1445 mm (56.9 inches) |
Fuel capacity
|
8.50 litres (2.25 US gallons) |
Other specifications |
Starter
|
Kick |
