General information |
|
Model
|

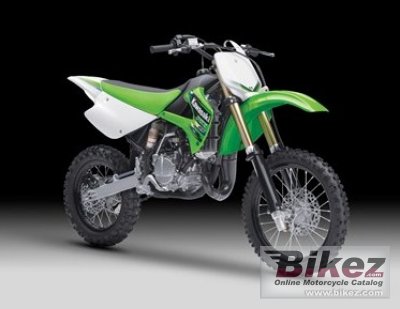

Kawasaki KX85-II |
|
Model year
|
2013 |
|
Category
|
Cross / motocross |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
84.0 ccm (5.13 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Engine details
|
Reed valve. |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
48.5 x 45.8 mm (1.9 x 1.8 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
Digital CDI |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet Multi Disc |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Perimeter, high-tensile steel |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
103 mm (4.1 inches) |
|
Front suspension
|
36 mm upside-down telescopic fork, |
|
Rear suspension
|
Bottom-Link Uni-Trak with adjustable |
|
Front tire
|
70/100-M19 |
|
Rear tire
|
90/100-M16 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
184 mm (7.2 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
71.0 kg (156.5 pounds) |
|
Seat height
|
870 mm (34.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1105 mm (43.5 inches) |
|
Overall length
|
1910 mm (75.2 inches) |
|
Overall width
|
735 mm (28.9 inches) |
|
Wheelbase
|
1290 mm (50.8 inches) |
|
Fuel capacity
|
5.50 litres (1.45 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
