General information |
|
Motorcycle name
|

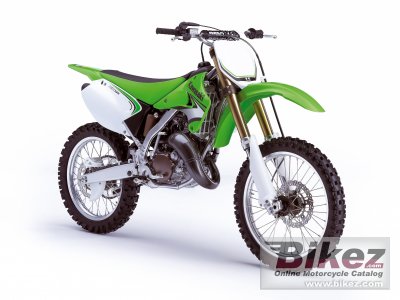

Kawasaki KX125 |
|
Model year
|
2009 |
|
Category
|
Cross / motocross |
|
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Compression
|
9.1:1 |
|
Bore x stroke
|
54.0 x 54.5 mm (2.1 x 2.1 inches) |
|
Fuel system
|
Carburettor. Mikuni TMX38x |
|
Ignition
|
Digital CDI |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High-tensile steel perimeter design with subframe member |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
113 mm (4.4 inches) |
|
Front suspension
|
36mm inverted telescopic cartridge fork with 18-way compression damping / 10.8 in. |
|
Rear suspension
|
UNI-TRAK® single shock system with 4-way compression and 18-way rebound damping plus adjustable spring preload / 10.8 in. |
|
Front tire
|
80/100-21 |
|
Rear tire
|
100/90-19 |
|
Front brakes
|
Single disc. Two-piston calipers |
|
Diameter
|
250 mm (9.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
87.0 kg (191.8 pounds) |
|
Seat height
|
945 mm (37.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1265 mm (49.8 inches) |
|
Overall length
|
2165 mm (85.2 inches) |
|
Overall width
|
815 mm (32.1 inches) |
|
Wheelbase
|
1470 mm (57.9 inches) |
|
Fuel capacity
|
8.20 litres (2.17 US gallons) |
|
Other specifications |
|
Color options
|
Lime Green |
|
Starter
|
Kick |
