Kawasaki KVF 750 4x4 20092009 Kawasaki KVF 750 4x4 specifications, pictures, reviews and rating |

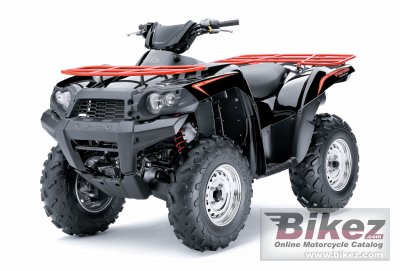

 2009 Kawasaki KVF 750 4x4. Picture credits - Kawasaki. Submit more pictures.
|
| Kawasaki's profilation of this bike |
| Equipped with an industry leading 90 degree V-twin engine, the premier model in the Kawasaki working ATV range boasts the fastest acceleration and greatest torque. |
| General information | |
|---|---|
| Model | Kawasaki KVF 750 4x4 |
| Year model | 2009 |
| Type | ATV |
| Rating | 3.2 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 749.0 ccm (45.70 cubic inches) |
| Type of engine | V2, four-stroke |
| Torque | 59.4 Nm (6.1 kgf-m or 43.8 ft.lbs) @ 4500 RPM |
| Compression | 8.8:1 |
| Bore x stroke | 85.0 x 66.0 mm (3.3 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. 2 x Mikuni |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Transistorised |
| Cooling system | Liquid |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double cradle, high-tensile tubular steel |
| Front suspension | Double wishbone |
| Rear suspension | Double wishbone |
| Front tire | 25/8-12 (AT) |
| Rear tire | 25/10-12 (AT) |
| Front brakes | Double disc |
| Diameter | 200 mm (7.9 inches) |
| Rear brakes | Sealed multidisc |
| Physical measures and capacities | |
| Dry weight | 275.0 kg (606.3 pounds) |
| Seat height | 904 mm (35.6 inches) If adjustable, lowest setting. |
| Overall height | 1233 mm (48.5 inches) |
| Overall length | 2195 mm (86.4 inches) |
| Overall width | 1166 mm (45.9 inches) |
| Ground clearance | 246 mm (9.7 inches) |
| Wheelbase | 1285 mm (50.6 inches) |
| Fuel capacity | 18.92 litres (5.00 US gallons) |
| Other specifications | |
| Color options | Black, green |
| Starter | Electric |
| Comments | 2WD/4WD. Dual range CVT with reverse. |
