Kawasaki KVF 650 4x4 20092009 Kawasaki KVF 650 4x4 specifications, pictures, reviews and rating |

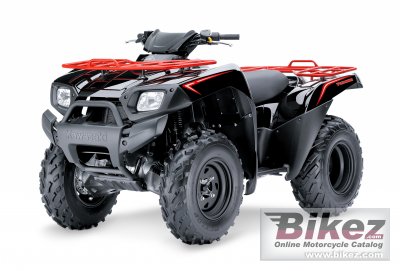

 2009 Kawasaki KVF 650 4x4. Picture credits - Kawasaki. Submit more pictures.
|
| Kawasaki's profilation of this bike |
| You need a powerful hard working ATV for a wide variety of demanding applications – you need the V-twin KVF650. |
| General information | |
|---|---|
| Model name | Kawasaki KVF 650 4x4 |
| Year | 2009 |
| Category | ATV |
| Rating | 3.8 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 633.0 ccm (38.63 cubic inches) |
| Engine type | V2, four-stroke |
| Compression | 9.9:1 |
| Bore x stroke | 80.0 x 63.0 mm (3.1 x 2.5 inches) |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital DC-CDI |
| Cooling system | Liquid |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet, multiplate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double-cradle, tubular steel |
| Front suspension | MacPherson strut |
| Rear suspension | Swingarm with adjustable shock absorber |
| Front tire | 25/8-12 (AT) |
| Rear tire | 25/10-12 (AT) |
| Front brakes | Double disc |
| Diameter | 200 mm (7.9 inches) |
| Rear brakes | Sealed multidisc |
| Physical measures and capacities | |
| Dry weight | 273.0 kg (601.9 pounds) |
| Seat height | 904 mm (35.6 inches) If adjustable, lowest setting. |
| Overall height | 1164 mm (45.8 inches) |
| Overall length | 2195 mm (86.4 inches) |
| Overall width | 1212 mm (47.7 inches) |
| Ground clearance | 185 mm (7.3 inches) |
| Wheelbase | 1285 mm (50.6 inches) |
| Fuel capacity | 20.43 litres (5.40 US gallons) |
| Other specifications | |
| Color options | Black, green |
| Starter | Electric |
| Comments | Dual range CVT with reverse. 2WD/4WD. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Kawasaki KVF 650 4x4 discussion group or the general Kawasaki discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2009 Kawasaki KVF 650 4x4 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Kawasaki bike | |
Offroad capabilities for the 2009 Kawasaki KVF 650 4x4:  (83.3 out of 100)Click here for complete rating. You can also compare bikes. |
|
