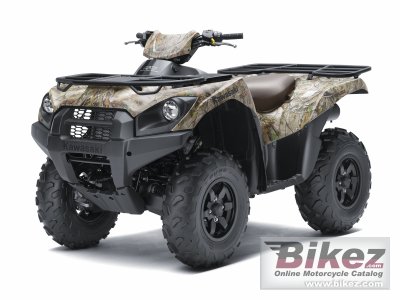

Kawasaki KVF750 4x4 EPS Camo 20132013 Kawasaki KVF750 4x4 EPS Camo specifications, pictures, reviews and rating |
| Kawasaki's profilation of this bike |
| Electronic Power Steering is not only speed variable, it also acts as a damping system reducing bump steer. |
| General information | |
|---|---|
| Model | Kawasaki KVF750 4x4 EPS Camo |
| Year | 2013 |
| Category | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 749.0 ccm (45.70 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 49.1 HP (35.8 kW)) @ 6750 RPM |
| Torque | 59.0 Nm (6.0 kgf-m or 43.5 ft.lbs) @ 5250 RPM |
| Compression | 9.3:1 |
| Bore x stroke | 85.0 x 66.0 mm (3.3 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Battery and Coil (Transistorised ignition) |
| Cooling system | Liquid |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | 2WD / 4WD, shaft |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double cradle, high-tensile tubular steel |
| Front suspension | Double wishbone with 5-way adjustable spring preload |
| Rear suspension | Double wishbone with 5-way adjustable spring preload |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc. Discs with 2-piston calipers. Parking brake: Enclosed wet multi-plate. |
| Diameter | 200 mm (7.9 inches) |
| Rear brakes | Sealed multidisc |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 316.0 kg (696.7 pounds) |
| Overall height | 1220 mm (48.0 inches) |
| Overall length | 2195 mm (86.4 inches) |
| Overall width | 1180 mm (46.5 inches) |
| Ground clearance | 240 mm (9.4 inches) |
| Wheelbase | 1285 mm (50.6 inches) |
| Fuel capacity | 19.00 litres (5.02 US gallons) |
| Other specifications | |
| Color options | Camo |
| Starter | Electric |
| Electrical | Starting battery. |
| Carrying capacity | Front and rear rack |
