General information |
|
Motorcycle name
|

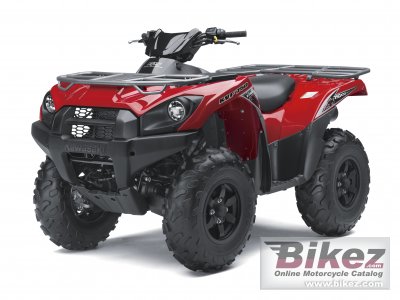

Kawasaki KVF750 4x4 EPS |
|
Year model
|
2013 |
|
Type
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
749.0 ccm (45.70 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
49.1 HP (35.8 kW)) @ 6750 RPM |
|
Torque
|
59.0 Nm (6.0 kgf-m or 43.5 ft.lbs) @ 6000 RPM |
|
Compression
|
9.3:1 |
|
Bore x stroke
|
85.0 x 66.0 mm (3.3 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Battery and Coil (Transistorised ignition) |
|
Cooling system
|
Liquid |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
2WD / 4WD, shaft |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle, high-tensile tubular steel |
|
Front suspension
|
Double wishbone with 5-way adjustable spring preload |
|
Rear suspension
|
Double wishbone with 5-way adjustable spring preload |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Double disc. Discs with 2-piston calipers. Parking brake: Enclosed wet multi-plate. |
|
Diameter
|
200 mm (7.9 inches) |
|
Rear brakes
|
Sealed multidisc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
316.0 kg (696.7 pounds) |
|
Overall height
|
1220 mm (48.0 inches) |
|
Overall length
|
2195 mm (86.4 inches) |
|
Overall width
|
1180 mm (46.5 inches) |
|
Ground clearance
|
240 mm (9.4 inches) |
|
Wheelbase
|
1285 mm (50.6 inches) |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Other specifications |
|
Color options
|
Black, red |
|
Starter
|
Electric |
|
Electrical
|
Starting battery. |
