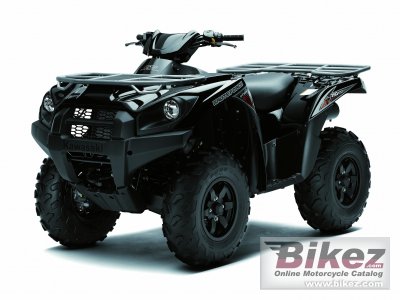

Kawasaki KVF750 4x4 20122012 Kawasaki KVF750 4x4 specifications, pictures, reviews and rating |
| Kawasaki's profilation of this bike |
| Independent rear suspension and double wishbone front layout allows accurate wheel tracking and supreme operator comfort. |
| General information | |
|---|---|
| Motorcycle name | Kawasaki KVF750 4x4 |
| Year model | 2012 |
| Type | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 749.0 ccm (45.70 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | 90 degree V-twin |
| Effect | 49.8 HP (36.3 kW)) @ 6500 RPM |
| Torque | 59.4 Nm (6.1 kgf-m or 43.8 ft.lbs) @ 4500 RPM |
| Compression | 9.3:1 |
| Bore x stroke | 85.0 x 66.0 mm (3.3 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. DFI ; (2) 36mm Mikuni throttle bodies |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCBI with digital advance |
| Cooling system | Liquid |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | Selectable four-wheel drive with Variable Front Differential Control, shaft |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double-cradle, high-tensile tubular steel |
| Front suspension | Double wishbone with twin shock absorbers |
| Front wheel travel | 171 mm (6.7 inches) |
| Rear suspension | Double wishbone with double shock absorbers |
| Rear wheel travel | 200 mm (7.9 inches) |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc |
| Diameter | 200 mm (7.9 inches) |
| Rear brakes | Sealed multidisc |
| Physical measures and capacities | |
| Dry weight | 275.0 kg (606.3 pounds) |
| Weight incl. oil, gas, etc | 297.0 kg (654.8 pounds) |
| Power/weight ratio | 0.1809 HP/kg |
| Overall height | 1233 mm (48.5 inches) |
| Overall length | 2195 mm (86.4 inches) |
| Overall width | 1166 mm (45.9 inches) |
| Ground clearance | 247 mm (9.7 inches) |
| Wheelbase | 1285 mm (50.6 inches) |
| Fuel capacity | 19.00 litres (5.02 US gallons) |
| Other specifications | |
| Color options | Red, green |
| Starter | Electric |
| Instruments | Speedometer, odometer, dual trip meters, fuel gauge, engine temp, clock, hour meter and 2WD/4WD icon, plus indicators for neutral, reverse, belt, and oil pressure. |
| Light | 35W headlights, 5W taillight, 21W stoplight |
| Factory warranty | 12 Months |
