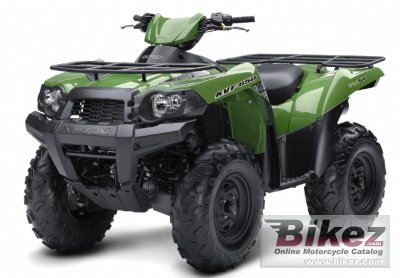

Kawasaki KVF650 4x4 20122012 Kawasaki KVF650 4x4 specifications, pictures, reviews and rating |
| Kawasaki's profilation of this bike |
| For negotiating hills and slippery surfaces, the limited slip differential is a real benefit by supplying power to the wheel that is able to provide the most traction. |
| General information | |
|---|---|
| Model | Kawasaki KVF650 4x4 |
| Year | 2012 |
| Category | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 633.0 ccm (38.63 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 41.4 HP (30.2 kW)) @ 6500 RPM |
| Torque | 52.1 Nm (5.3 kgf-m or 38.4 ft.lbs) @ 4000 RPM |
| Compression | 9.9:1 |
| Bore x stroke | 80.0 x 63.0 mm (3.1 x 2.5 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. (2) Keihin CVKR-D32 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | DC-CDI |
| Cooling system | Liquid |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | Selectable four-wheel drive with variable front differential control, shaft |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double cradle, high-tensile tubular steel |
| Trail | 15 mm (0.6 inches) |
| Front suspension | MacPherson strut |
| Rear suspension | Swingarm with adjustable shock absorber |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc |
| Diameter | 200 mm (7.9 inches) |
| Rear brakes | Sealed multidisc |
| Physical measures and capacities | |
| Dry weight | 273.0 kg (601.9 pounds) |
| Weight incl. oil, gas, etc | 294.0 kg (648.2 pounds) |
| Power/weight ratio | 0.1518 HP/kg |
| Seat height | 904 mm (35.6 inches) If adjustable, lowest setting. |
| Overall height | 1164 mm (45.8 inches) |
| Overall length | 2185 mm (86.0 inches) |
| Overall width | 1212 mm (47.7 inches) |
| Ground clearance | 244 mm (9.6 inches) |
| Wheelbase | 1285 mm (50.6 inches) |
| Fuel capacity | 18.00 litres (4.76 US gallons) |
| Other specifications | |
| Color options | Scout Green, Adventure Blue |
| Starter | Electric |
| Instruments | Digital speedometer, odometer, dual trip meters, clock, hour meter, fuel gauge, 2x4 / 4x4 indicator light, neutral indicator light, reverse indicator light, low fuel warning light, low oil warning light |
| Light | (2) 40W headlights, 5W taillight, 21W stoplight |
| Factory warranty | 12 Months |
