General information |
|
Model name
|

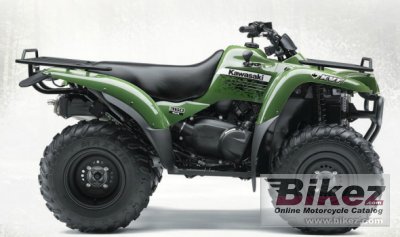

Kawasaki KVF360 4x4 |
|
Year of manufacture
|
2012 |
|
Type
|
ATV |
|
Rating
|
3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
362.0 ccm (22.09 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
21.1 HP (15.4 kW)) @ 6500 RPM |
|
Torque
|
26.1 Nm (2.7 kgf-m or 19.3 ft.lbs) @ 4500 RPM |
|
Compression
|
8.3:1 |
|
Bore x stroke
|
80.0 x 72.0 mm (3.1 x 2.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital DC-CDI |
|
Cooling system
|
Air |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
CVT with reverse. Gear Shaft (Selectable 4WD/2WD) final drive. |
|
Chassis, suspension, brakes and wheels |
|
Trail
|
15 mm (0.6 inches) |
|
Front suspension
|
MacPherson strut |
|
Front wheel travel
|
170 mm (6.7 inches) |
|
Rear suspension
|
Swingarm with single shock absorber |
|
Rear wheel travel
|
180 mm (7.1 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Double disc |
|
Diameter
|
166 mm (6.5 inches) |
|
Rear brakes
|
Sealed multidisc |
|
Physical measures and capacities |
|
Dry weight
|
274.5 kg (605.2 pounds) |
|
Weight incl. oil, gas, etc
|
294.0 kg (648.2 pounds) |
|
Power/weight ratio
|
0.0767 HP/kg |
|
Seat height
|
904 mm (35.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1175 mm (46.3 inches) |
|
Overall length
|
2065 mm (81.3 inches) |
|
Overall width
|
1205 mm (47.4 inches) |
|
Ground clearance
|
250 mm (9.8 inches) |
|
Wheelbase
|
1285 mm (50.6 inches) |
|
Fuel capacity
|
13.50 litres (3.57 US gallons) |
|
Other specifications |
|
Color options
|
Dark green |
|
Starter
|
Electric |
|
Factory warranty
|
12 Months |
