General information |
|
Model
|

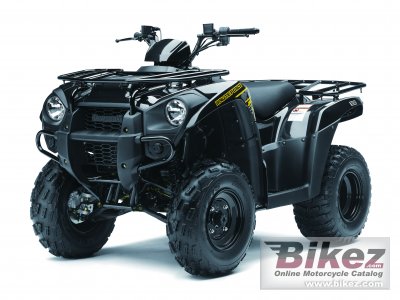

Kawasaki KVF300 |
|
Year model
|
2013 |
|
Type
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
271.0 ccm (16.54 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
21.5 HP (15.7 kW)) @ 7500 RPM |
|
Torque
|
22.3 Nm (2.3 kgf-m or 16.4 ft.lbs) @ 2300 RPM |
|
Compression
|
11.0:1 |
|
Bore x stroke
|
72.7 x 65.2 mm (2.9 x 2.6 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Full transistor digital ignition |
|
Cooling system
|
Liquid |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
2WD, shaft |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double tubular, steel |
|
Front suspension
|
Double wishbone with 5-way adjustable preload |
|
Rear suspension
|
Swingarm with 5-way |
|
Front tire
|
22/7-10 |
|
Rear tire
|
22/10-10 |
|
Front brakes
|
Double disc. Discs with single-piston calipers |
|
Diameter
|
180 mm (7.1 inches) |
|
Rear brakes
|
Single disc. Disc with single-piston caliper Parking brake engages rear brake |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
274.5 kg (605.2 pounds) |
|
Weight incl. oil, gas, etc
|
242.0 kg (533.5 pounds) |
|
Power/weight ratio
|
0.0782 HP/kg |
|
Overall height
|
1170 mm (46.1 inches) |
|
Overall length
|
1915 mm (75.4 inches) |
|
Overall width
|
1080 mm (42.5 inches) |
|
Ground clearance
|
155 mm (6.1 inches) |
|
Wheelbase
|
1165 mm (45.9 inches) |
|
Fuel capacity
|
12.00 litres (3.17 US gallons) |
|
Other specifications |
|
Color options
|
Black, red |
|
Starter
|
Electric |
|
Carrying capacity
|
Front and rear rack |
