General information |
|
Motorcycle name
|

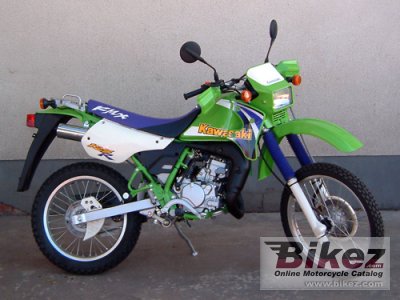

Kawasaki KMX 125 |
|
Model year
|
1997 |
|
Category
|
Enduro / offroad |
|
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
125.0 ccm (7.63 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power output
|
15.0 HP (10.9 kW)) @ 8500 RPM |
|
Torque
|
13.0 Nm (1.3 kgf-m or 9.6 ft.lbs) @ 6600 RPM |
|
Compression
|
7.8:1 |
|
Bore x stroke
|
54.0 x 1,093.0 mm (2.1 x 43.0 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
230 mm (9.1 inches) |
|
Rear suspension
|
Swing arm |
|
Rear wheel travel
|
230 mm (9.1 inches) |
|
Front tire
|
2.75-21 |
|
Rear tire
|
4.10-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
230 mm (9.1 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
210 mm (8.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
96.0 kg (211.6 pounds) |
|
Power/weight ratio
|
0.1563 HP/kg |
|
Seat height
|
865 mm (34.1 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1375 mm (54.1 inches) |
|
Fuel capacity
|
9.30 litres (2.46 US gallons) |
|
Oil capacity
|
2.00 litres (2.11 US quarts) |
|
Other specifications |
|
Starter
|
Kick |
| Update specs | Report missing specs or required updates. |
|
Maintenance and service specs * |
|
Engine oil
|
Synthetic |
|
Brake fluid
|
DOT 4 |
|
Coolant
|
1.00 litres (0.26 US gallons) |
|
Spark plugs
|
NGK BR8ES, NGK BR8EIX |
|
Idle speed
|
1100-1400 RPM |
|
Chain links
|
124 |
|
Sprockets
|
14/16 (front/rear) |
|
Tire pressure front
|
22 PSI (1.5 Bar or 150 kPa) |
|
Tire pressure rear
|
22 PSI (1.5 Bar or 150 kPa) |
| *) Always verify maintenance and service data with the bike owner's manual. |
|
