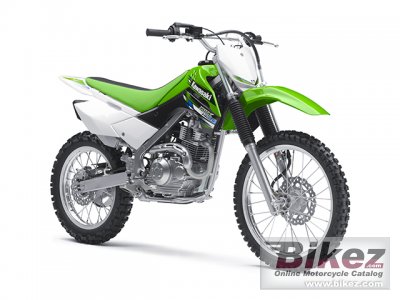

Kawasaki KLX 140L 20132013 Kawasaki KLX 140L specifications, pictures, reviews and rating |
| Kawasaki's profilation of this bike |
| If the standard KLX™ 140 with its 17” front and 14” rear wheels holds appeal for both young and old, the KLX140L incorporates all of its many features, yet packages them in a slightly beefier version, giving taller riders something to crow about. The 19” front and 16” rear wheels on the L-version are only part of the story, as its also equipped with a more performance-oriented , reservoir-type shock that the larger, more experienced rider will quickly appreciate. |
| General information | |
|---|---|
| Model name | Kawasaki KLX 140L |
| Year model | 2013 |
| Type | Enduro / offroad |
| Price as new | US$ 3299. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 144.0 ccm (8.79 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Compression | 9.5:1 |
| Bore x stroke | 58.0 x 54.4 mm (2.3 x 2.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Keihin PB20 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | High-Tensile steel, box-section perimeter |
| Rake (fork angle) | 27.0° |
| Trail | 97 mm (3.8 inches) |
| Front suspension | 33mm telescopic fork / 7.1 in. |
| Rear suspension | Uni-Trak linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping / 7.1 in. |
| Front tire | 70/100-19 |
| Rear tire | 90/100-16 |
| Front brakes | Single disc. Petal disc with a 2-piston caliper |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Single disc. Single piston caliper |
| Diameter | 186 mm (7.3 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 95.0 kg (209.4 pounds) |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 1074 mm (42.3 inches) |
| Overall length | 1895 mm (74.6 inches) |
| Overall width | 790 mm (31.1 inches) |
| Ground clearance | 254 mm (10.0 inches) |
| Wheelbase | 1285 mm (50.6 inches) |
| Fuel capacity | 5.68 litres (1.50 US gallons) |
| Other specifications | |
| Color options | Lime Green |
| Factory warranty | 6 months base warranty |
| Update specs | Report missing specs or required updates. |
