Kawasaki's profilation of this bike |
Off-road riders and mini moto enthusiasts dont have to settle for simple one-size machines with limited performance and cramped ergonomics. Kawasakis KLX140 dirtbike with its 17 front / 14 rear wheels has opened the door for a wider variety of riders in the small displacement off-road arena. |
General information |
Motorcycle name
|

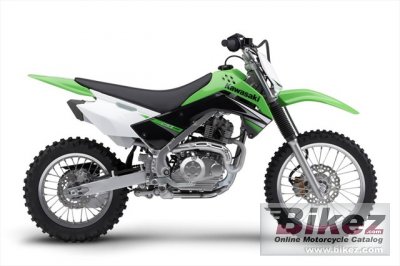

Kawasaki KLX 140 |
Year
|
2010 |
Category
|
Enduro / offroad |
Price as new | US$ 2799. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
144.0 ccm (8.79 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
9.5:1 |
Bore x stroke
|
58.0 x 54.4 mm (2.3 x 2.1 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor. Keihin PB20 |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CDI |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Frame type
|
High-Tensile steel, box-section perimeter |
Rake (fork angle)
|
27.0° |
Front suspension
|
33mm telescopic fork / 7.1 in. |
Rear suspension
|
UNI-TRAK linkage system and single shock with 5-way preload adjustability / 7.1 in. |
Front tire
|
70/100-17 |
Rear tire
|
90/100-14 |
Front brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
186 mm (7.3 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
93.0 kg (205.0 pounds) |
Seat height
|
780 mm (30.7 inches) If adjustable, lowest setting. |
Overall length
|
1821 mm (71.7 inches) |
Overall width
|
790 mm (31.1 inches) |
Ground clearance
|
236 mm (9.3 inches) |
Wheelbase
|
1260 mm (49.6 inches) |
Fuel capacity
|
5.67 litres (1.50 US gallons) |
Other specifications |
Color options
|
Lime Green |
