Kawasaki KLX 125D 20102010 Kawasaki KLX 125D specifications, pictures, reviews and rating |

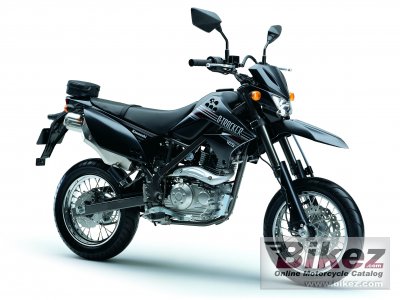

 2010 Kawasaki KLX 125D. Picture credits - Kawasaki. Submit more pictures.
|
| General information | |
|---|---|
| Model name | Kawasaki KLX 125D |
| Year model | 2010 |
| Type | Super motard |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 124.0 ccm (7.57 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Torque | 10.0 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 6400 RPM |
| Compression | 9.5:1 |
| Bore x stroke | 54.0 x 54.4 mm (2.1 x 2.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Keihin |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital DC-CDI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multidisk |
| Chassis, suspension, brakes and wheels | |
| Frame type | Perimeter, steel |
| Rake (fork angle) | 26.0° |
| Trail | 94 mm (3.7 inches) |
| Front suspension | Inverted telescopic fork |
| Front wheel travel | 175 mm (6.9 inches) |
| Rear suspension | Uni-Track |
| Rear wheel travel | 180 mm (7.1 inches) |
| Front tire | 100/80-14 |
| Rear tire | 120/80-14 |
| Front brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 114.0 kg (251.3 pounds) |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height | 1060 mm (41.7 inches) |
| Overall length | 1980 mm (78.0 inches) |
| Overall width | 770 mm (30.3 inches) |
| Ground clearance | 230 mm (9.1 inches) |
| Wheelbase | 1255 mm (49.4 inches) |
| Fuel capacity | 7.00 litres (1.85 US gallons) |
| Other specifications | |
| Starter | Electric |
