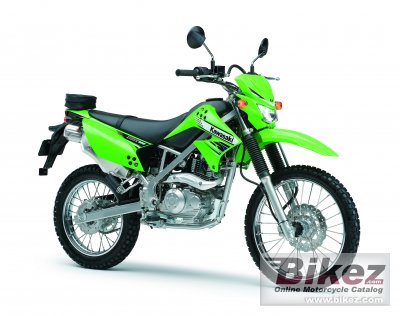

Kawasaki KLX 125 20122012 Kawasaki KLX 125 specifications, pictures, reviews and rating |
| Kawasaki's profilation of this bike |
| With all chassis components were designed specifically for the 125 cm³ class (rather than borrowed from larger-displacement models), the KLX125 has very well-balanced proportions that add to their sharp appearance. |
| General information | |
|---|---|
| Model | Kawasaki KLX 125 |
| Year of manufacture | 2012 |
| Type | Enduro / offroad |
| Rating | 2.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 125.0 ccm (7.63 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 10.2 HP (7.4 kW)) @ 8000 RPM |
| Torque | 10.0 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 6400 RPM |
| Compression | 9.5:1 |
| Bore x stroke | 54.0 x 54.4 mm (2.1 x 2.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Fuel injection: ø20 mm x 1 (Keihin) |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Digital DC-CDI |
| Lubrication system | Forced lubrication, wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc, manual |
| Chassis, suspension, brakes and wheels | |
| Frame type | Perimeter, steel |
| Rake (fork angle) | 27.2° |
| Trail | 101 mm (4.0 inches) |
| Front suspension | 33 mm telescopic fork |
| Front wheel travel | 175 mm (6.9 inches) |
| Rear suspension | Uni-Trak |
| Rear wheel travel | 180 mm (7.1 inches) |
| Front tire | 70/100-19 |
| Rear tire | 90/100-16 |
| Front brakes | Single disc. Twin-piston |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc |
| Diameter | 190 mm (7.5 inches) |
| Physical measures and capacities | |
| Dry weight | 113.0 kg (249.1 pounds) |
| Power/weight ratio | 0.0902 HP/kg |
| Seat height | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Overall height | 1090 mm (42.9 inches) |
| Overall length | 1980 mm (78.0 inches) |
| Overall width | 770 mm (30.3 inches) |
| Ground clearance | 255 mm (10.0 inches) |
| Wheelbase | 1285 mm (50.6 inches) |
| Fuel capacity | 7.00 litres (1.85 US gallons) |
| Other specifications | |
| Color options | Lime green |
| Starter | Electric |
