Kawasaki's profilation of this bike |
The standard KLX110 – with its reliable four-stroke engine, automatic-clutch drivetrain and electric, push-button starter – is much-loved by kids, beginners and adults for its unreal fun-factor and riding ease. But to expand the KLX110’s envelope a bit – make it even more accessible to even more riders – Kawasaki developed the KLX110L, which incorporates features designed to appeal to a slightly larger, slightly more advanced rider – along with all those adults who love riding the little green bikes. |
General information |
Model name
|

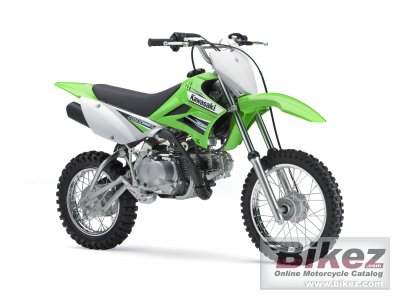

Kawasaki KLX 110L Off-Road |
Year of manufacture
|
2012 |
Type
|
Enduro / offroad |
Price as new | US$ 2349. MSRP depends on country, taxes, accessories, etc. |
Rating
|
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
Engine and transmission |
Engine size
|
111.0 ccm (6.77 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
9.5:1 |
Bore x stroke
|
53.0 x 50.6 mm (2.1 x 2.0 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor. Keihin PB18 |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CDI |
Cooling system
|
Air |
Gearbox
|
4-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Automatic |
Chassis, suspension, brakes and wheels |
Frame type
|
Backbone frame, high-tensile steel |
Rake (fork angle)
|
24.2° |
Front suspension
|
30mm hydraulic telescopic fork / 5.5 in. |
Rear suspension
|
Swingarm with single hydraulic shock / 5.2 in. |
Front tire
|
2.50-14 |
Rear tire
|
3.00-12 |
Front brakes
|
Expanding brake (drum brake) |
Rear brakes
|
Expanding brake (drum brake) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
76.2 kg (168.0 pounds) |
Seat height
|
729 mm (28.7 inches) If adjustable, lowest setting. |
Overall length
|
1560 mm (61.4 inches) |
Overall width
|
650 mm (25.6 inches) |
Ground clearance
|
264 mm (10.4 inches) |
Wheelbase
|
1074 mm (42.3 inches) |
Fuel capacity
|
3.79 litres (1.00 US gallons) |
Other specifications |
Color options
|
Lime Green |
Factory warranty
|
6 months |
