Kawasaki's profilation of this bike |

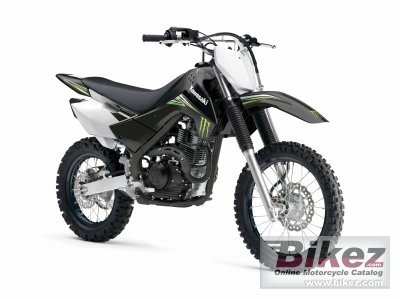

Already noted for its exceptional capabilities and easy-to-handle nature, Kawasaki’s KLX™140 Monster Energy® should be an even bigger hit with young riders and motocross fans. Black bodywork, frame and wheels, green hubs and Monster Energy graphics set this right-sized dirt bike apart from the pack. |
General information |
Model name
|
Kawasaki KLX140L Monster Energy |
Year of manufacture
|
2009 |
Type
|
Enduro / offroad |
Price as new | US$ 3299. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
144.0 ccm (8.79 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
9.5:1 |
Bore x stroke
|
58.0 x 54.4 mm (2.3 x 2.1 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor. Keihin PB20 |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CDI |
Cooling system
|
Air |
Gearbox
|
5-speed |
Chassis, suspension, brakes and wheels |
Frame type
|
High-Tensile steel, box-section perimeter |
Rake (fork angle)
|
27.0° |
Front suspension
|
33mm telescopic fork / 7.1 in. |
Rear suspension
|
UNI-TRAK® linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping / 7.1 in. |
Front tire
|
70/80-19 |
Rear tire
|
90/90-16 |
Front brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
240 mm (9.4 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
95.0 kg (209.4 pounds) |
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
Overall height
|
1074 mm (42.3 inches) |
Overall length
|
1895 mm (74.6 inches) |
Overall width
|
790 mm (31.1 inches) |
Wheelbase
|
1285 mm (50.6 inches) |
Fuel capacity
|
5.67 litres (1.50 US gallons) |
Other specifications |
Color options
|
Ebony |
Starter
|
Electric & kick |
Comments
|
Higher version of the ordinary KLX140. |
