General information |
|
Model
|

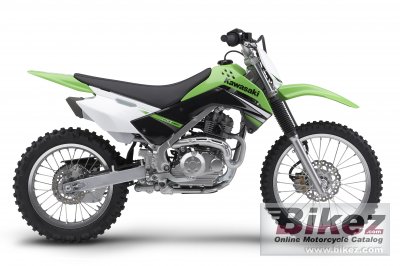

Kawasaki KLX140L |
|
Year
|
2009 |
|
Category
|
Enduro / offroad |
| Price as new | US$ 3099. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
144.0 ccm (8.79 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
9.5:1 |
|
Bore x stroke
|
58.0 x 54.4 mm (2.3 x 2.1 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
High-Tensile steel, box-section perimeter |
|
Rake (fork angle)
|
27.0° |
|
Front suspension
|
33mm telescopic fork / 7.1 in. |
|
Rear suspension
|
UNI-TRAK® linkage system and single shock with piggyback reservoir, fully adjustable preload and 22-way rebound damping / 7.1 in. |
|
Front tire
|
70/80-19 |
|
Rear tire
|
90/90-16 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
95.0 kg (209.4 pounds) |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1074 mm (42.3 inches) |
|
Overall width
|
790 mm (31.1 inches) |
|
Ground clearance
|
254 mm (10.0 inches) |
|
Wheelbase
|
1285 mm (50.6 inches) |
|
Fuel capacity
|
5.67 litres (1.50 US gallons) |
|
Other specifications |
|
Color options
|
Lime Green |
|
Starter
|
Electric & kick |
