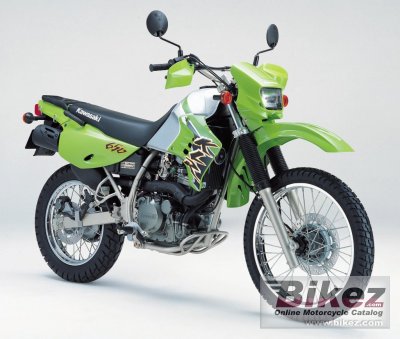

Kawasaki KLR 650 20022002 Kawasaki KLR 650 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Kawasaki KLR 650 |
| Model year | 2002 |
| Category | Enduro / offroad |
| Rating | 3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 651.0 ccm (39.72 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 42.0 HP (30.7 kW)) @ 7100 RPM |
| Top speed | 164.0 km/h (101.9 mph) |
| Compression | 9.5:1 |
| Bore x stroke | 100.0 x 83.0 mm (3.9 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Keihin CVK40 |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | Digital TCBI |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Single downtubes, fully cradle frame box section aluminium swingarm |
| Rake (fork angle) | 28.0° |
| Trail | 111 mm (4.4 inches) |
| Front suspension | 38mm Air assisted Kayaba forks |
| Front wheel travel | 230 mm (9.1 inches) |
| Rear suspension | Single Kayaba shock |
| Rear wheel travel | 230 mm (9.1 inches) |
| Front tire | 90/90-21 |
| Rear tire | 130/80-17 |
| Front brakes | Single disc |
| Diameter | 230 mm (9.1 inches) |
| Rear brakes | Single disc |
| Diameter | 204 mm (8.0 inches) |
| Physical measures and capacities | |
| Dry weight | 168.0 kg (370.4 pounds) |
| Weight incl. oil, gas, etc | 189.0 kg (416.7 pounds) |
| Power/weight ratio | 0.2500 HP/kg |
| Seat height | 889 mm (35.0 inches) If adjustable, lowest setting. |
| Fuel capacity | 23.00 litres (6.08 US gallons) |
| Oil capacity | 2.50 litres (2.64 US quarts) |
| Other specifications | |
| Color options | Green, black |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-40 |
| Oil filter | Fram - CH6070 |
| Brake fluid | DOT 4 |
| Coolant | 1.00 litres (0.26 US gallons) |
| Battery | YB14L-A2 |
| Spark plugs | NGK DPR8EA-9, NGK DPR8EIX-9 |
| Idle speed | 1300 +/- 50 RPM |
| Chain size | 520 |
| Chain links | 106 |
| Sprockets | 15/42 (front/rear) |
| Tire pressure front | 22 PSI (1.5 Bar or 150 kPa) |
| Tire pressure rear | 32 PSI (2.2 Bar or 220 kPa) |
| Fork tube size | 41 mm (1.6 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
