General information |
|
Model
|

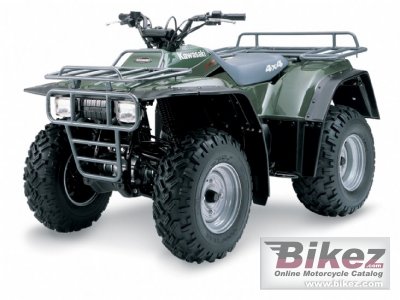

Kawasaki KLF300 4x4 |
|
Model year
|
2009 |
|
Category
|
ATV |
|
Rating
|
3.4 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
290.0 ccm (17.70 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
8.6:1 |
|
Bore x stroke
|
76.0 x 64.0 mm (3.0 x 2.5 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Keihin CVK 34 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
TCBI |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle steel |
|
Front suspension
|
Independent double wishbone with dual adjustable |
|
Rear suspension
|
Quad-Link with twin shock absorbers |
|
Front tire
|
24/8-11 (AT) |
|
Rear tire
|
24/10-11 (AT) |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
263.0 kg (579.8 pounds) |
|
Overall height
|
1105 mm (43.5 inches) |
|
Overall length
|
1860 mm (73.2 inches) |
|
Overall width
|
1210 mm (47.6 inches) |
|
Ground clearance
|
173 mm (6.8 inches) |
|
Fuel capacity
|
11.00 litres (2.91 US gallons) |
|
Other specifications |
|
Color options
|
Hunter green |
|
Starter
|
Electric |
|
Comments
|
5-speed semi-automatic, dual range, 4WD with reverse. |
