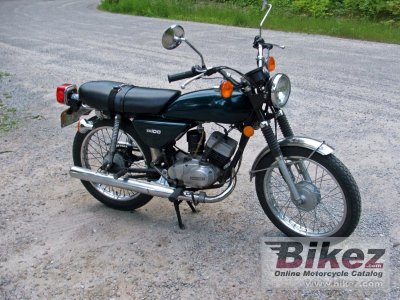

Kawasaki KH100-B7 19761976 Kawasaki KH100-B7 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Kawasaki KH100-B7 |
| Year | 1976 |
| Category | Classic |
| Rating | 3.1 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 99.0 ccm (6.04 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 10.5 HP (7.7 kW)) @ 7500 RPM |
| Torque | 9.8 Nm (1.0 kgf-m or 7.2 ft.lbs) @ 7000 RPM |
| Top speed | 104.6 km/h (65.0 mph) |
| Max RPM | 10000 |
| Compression | 7.0:1 |
| Bore x stroke | 49.5 x 51.8 mm (1.9 x 2.0 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Mikuni VM19SC |
| Fuel control | Rotary valves |
| Ignition | Magneto |
| Lubrication system | Superlube - Oil Injection Pump |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet Plate |
| Fuel consumption | 3.92 litres/100 km (25.5 km/l or 60.01 mpg) |
| Greenhouse gases | 90.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | Single stainless steel pipe |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel Frame |
| Rake (fork angle) | 26.0° |
| Trail | 84 mm (3.3 inches) |
| Front suspension | Front Forks |
| Rear suspension | Dual shocks |
| Front tire | 2.75-18 |
| Rear tire | 3.25-18 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 84.4 kg (186.0 pounds) |
| Power/weight ratio | 0.1245 HP/kg |
| Overall height | 1035 mm (40.7 inches) |
| Overall length | 1835 mm (72.2 inches) |
| Overall width | 840 mm (33.1 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1150 mm (45.3 inches) |
| Fuel capacity | 7.94 litres (2.10 US gallons) |
| Oil capacity | 1.50 litres (1.59 US quarts) |
| Other specifications | |
| Color options | Candy Royal Blue |
| Starter | Kick |
| Comments | Spark Plug: B8HS Top Speed is greatly dependent on weight/size of rider! |
