| General information |
|---|

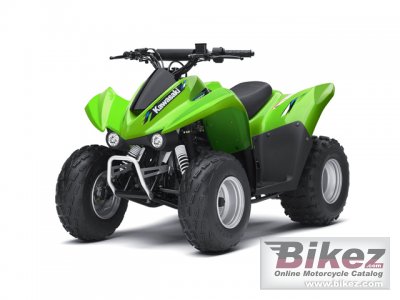

| Model: | Kawasaki KFX 90 |
| Year: | 2013 |
| Category: | ATV |
| Price as new: | US$ 2749. MSRP depends on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 89.0 ccm (5.43 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 10.0:1 |
| Bore x stroke: | 47.0 x 51.8 mm (1.9 x 2.0 inches) |
| Fuel system: | Carburettor. Mikuni PTE 16 |
| Ignition: | Solid state CDI |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double cradle, steel |
| Front suspension: | Single A-arm with twin shock absorbers / 2.8 in. |
| Rear suspension: | Swingarm with single shock absorber / 2.9 in. |
| Front tire: | 18/7-8 |
| Rear tire: | 18/9-8 |
| Front brakes: | Double disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 118.8 kg (262.0 pounds) |
| Overall length: | 1425 mm (56.1 inches) |
| Overall width: | 904 mm (35.6 inches) |
| Ground clearance: | 99 mm (3.9 inches) |
| Wheelbase: | 965 mm (38.0 inches) |
| Fuel capacity: | 5.68 litres (1.50 gallons) |
| Other specifications |
|---|
| Color options: | Lime Green |
| Starter: | Electric |
| Instruments: | Speedometer, odometer, clock, fuel gauge and coolant temp light |
| Light: | Dual removable 30w headlights / LED taillight / brake light |
| Factory warranty: | 12 Months |
