| General information |
|---|

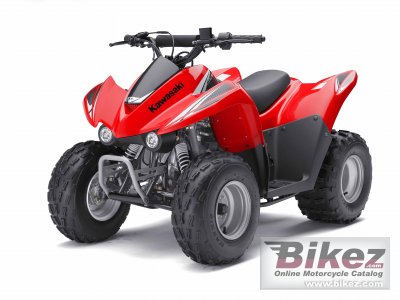

| Model: | Kawasaki KFX 90 |
| Year: | 2009 |
| Category: | ATV |
| Rating: | 67.3 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 3299. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 89.00 ccm (5.43 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 10.0:1 |
| Bore x stroke: | 47.0 x 51.8 mm (1.9 x 2.0 inches) |
| Fuel system: | Carburettor. Mikuni PTE 16 |
| Ignition: | Solid state CDI |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double cradle, steel |
| Front suspension: | Dual A-arms, coil-over shocks / 8.5 in |
| Rear suspension: | Swingarm with piggy-back reservoir shock, dual-rate spring / 10.0 in |
| Front tyre: | 18/7-10 (AT) |
| Rear tyre: | 18/9-9 (AT) |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 394.7 kg (870.2 pounds) |
| Overall length: | 1,425 mm (56.1 inches) |
| Overall width: | 904 mm (35.6 inches) |
| Ground clearance: | 1,000 mm (39.4 inches) |
| Wheelbase: | 965 mm (38.0 inches) |
| Fuel capacity: | 5.67 litres (1.50 gallons) |
| Other specifications |
|---|
| Color options: | Lime Green, Sunbeam Red |
| Comments: | 2WD. Continuously Variable Automatic transmission. |
