General information |
|
Model
|

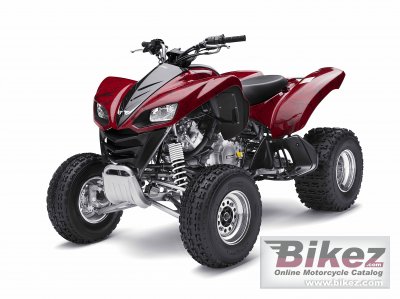

Kawasaki KFX 700 |
|
Year
|
2009 |
|
Category
|
ATV |
| Price as new | US$ 6849. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.6 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
697.0 ccm (42.53 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Compression
|
8.9:1 |
|
Bore x stroke
|
82.0 x 66.0 mm (3.2 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. Dual Keihin CVKR-D32 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Solid state with electronic ignition backup |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double cradle, racing type, high-tensile tubular steel |
|
Front suspension
|
Dual A-arms, coil-over shocks / 9.3 in. |
|
Rear suspension
|
Linkless swingarm, piggy-back reservoir shock, dual-rate spring / 7.9 in. |
|
Front tire
|
22/8-10 (AT) |
|
Rear tire
|
22/11-10 (AT) |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Sealed multidisc |
|
Physical measures and capacities |
|
Dry weight
|
250.1 kg (551.3 pounds) |
|
Seat height
|
851 mm (33.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1171 mm (46.1 inches) |
|
Overall length
|
1984 mm (78.1 inches) |
|
Overall width
|
1194 mm (47.0 inches) |
|
Ground clearance
|
244 mm (9.6 inches) |
|
Wheelbase
|
1285 mm (50.6 inches) |
|
Fuel capacity
|
12.11 litres (3.20 US gallons) |
|
Other specifications |
|
Color options
|
Lime Green, Metallic Marble Red |
|
Starter
|
Electric |
|
Comments
|
Continuously variable transmission with forward, reverse and neutral. Dual 45W halogen headlights, 5/21W taillight/brake light. |
