Kawasaki's profilation of this bike |
Your kid will think all their Christmases have come at once with this fun-packed little ATV. Designed specifically with little bodies in mind, the KFX50 boasts a range of user-friendly features such as a built-in throttle limiter, automatic transmission and low seat height. |
General moped information |
Model name
|

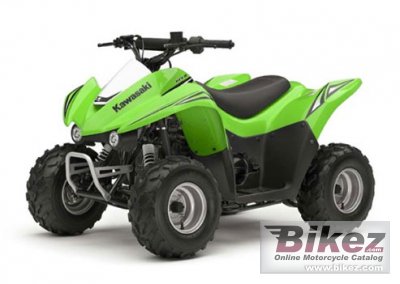

Kawasaki KFX 50 |
Model year
|
2011 |
Category
|
ATV |
Rating
|
3.2 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Displacement
|
49.5 ccm (3.02 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Compression
|
10.8:1 |
Bore x stroke
|
39.0 x 41.4 mm (1.5 x 1.6 inches) |
Fuel system
|
Carburettor. Keihin PTE 16 |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Solid state CDI |
Cooling system
|
Air |
Gearbox
|
Automatic |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Frame type
|
Double cradle, steel |
Front suspension
|
Independent, Single A-arm |
Front wheel travel
|
71 mm (2.8 inches) |
Rear suspension
|
Swingarm with single shock absorber |
Rear wheel travel
|
74 mm (2.9 inches) |
Front tire
|
16/8-7 |
Rear tire
|
16/8-7 |
Front brakes
|
Expanding brake (drum brake) |
Rear brakes
|
Single disc |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
109.0 kg (240.3 pounds) |
Seat height
|
635 mm (25.0 inches) If adjustable, lowest setting. |
Overall length
|
1425 mm (56.1 inches) |
Overall width
|
904 mm (35.6 inches) |
Ground clearance
|
85 mm (3.3 inches) |
Wheelbase
|
965 mm (38.0 inches) |
Fuel capacity
|
5.50 litres (1.45 US gallons) |
Other specifications |
Starter
|
Electric & kick |
Factory warranty
|
12 Months |
