General information |
Motorcycle name
|

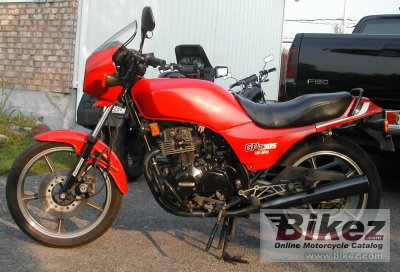

Kawasaki GPZ 305 Belt Drive |
Year
|
1985 |
Category
|
Sport |
Rating
|
3.0 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
306.0 ccm (18.67 cubic inches) |
Engine type
|
Twin, four-stroke |
Power
|
27.0 HP (19.7 kW)) @ 10000 RPM |
Torque
|
25.5 Nm (2.6 kgf-m or 18.8 ft.lbs) |
Top speed
|
140.0 km/h (87.0 mph) |
Compression
|
9.7:1 |
Bore x stroke
|
61.0 x 52.4 mm (2.4 x 2.1 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor. 2 x 32mm Keihin CVi carburetors |
Fuel control
|
Overhead Cams (OHC) |
Ignition
|
Magneto CDI |
Lubrication system
|
Forced feed lubrication |
Cooling system
|
Air |
Gearbox
|
6-speed |
Transmission type
|
Belt (final drive) |
Clutch
|
Wet clutch |
Fuel consumption
|
3.62 litres/100 km (27.6 km/l or 64.98 mpg) |
Greenhouse gases
|
84.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Rake (fork angle)
|
26.5° |
Trail
|
95 mm (3.7 inches) |
Front suspension
|
Telescopic forks |
Rear suspension
|
Swing arm |
Front tire
|
90/90-18 |
Rear tire
|
110/80-18 |
Front brakes
|
Double disc |
Rear brakes
|
Expanding brake |
Physical measures and capacities |
Dry weight
|
147.0 kg (324.1 pounds) |
Weight incl. oil, gas, etc
|
164.0 kg (361.6 pounds) |
Power/weight ratio
|
0.1837 HP/kg |
Seat height
|
784 mm (30.9 inches) If adjustable, lowest setting. |
Wheelbase
|
1355 mm (53.3 inches) |
Fuel capacity
|
16.50 litres (4.36 US gallons) |
Other specifications |
Starter
|
Electric |
Comments
|
Area code UK,FG: frame range EX305B 004601 - EX305B 006700, engine range KZ305AG 001801 - KZ305AG 003000.
Area code UK,FG: frame range EX305B 004601 - EX305B 006700, engine range KZ305AE 027501 - KZ305AE 028400. |
