General information |
Model
|

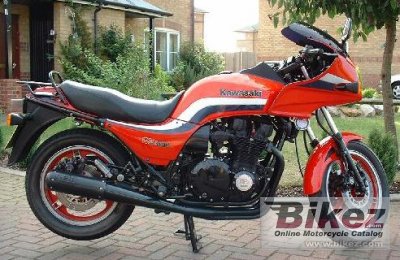

Kawasaki GPZ 1100 |
Year
|
1983 |
Category
|
Sport touring |
Rating
|
3.9 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
Engine and transmission |
Displacement
|
1089.0 ccm (66.45 cubic inches) |
Engine type
|
In-line four, four-stroke |
Power
|
120.0 HP (87.6 kW)) @ 9000 RPM |
Torque
|
100.3 Nm (10.2 kgf-m or 74.0 ft.lbs) @ 7000 RPM |
Compression
|
9.5:1 |
Bore x stroke
|
72.5 x 66.0 mm (2.9 x 2.6 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Injection |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Inductive, magnetically triggered. |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
37mm Kayaba, hydraulically activated air drive abutments for air pressure |
Front wheel travel
|
150 mm (5.9 inches) |
Rear suspension
|
Single shock, air assisted adjustable for reload damping |
Rear wheel travel
|
109 mm (4.3 inches) |
Front tire
|
110/90-18 |
Rear tire
|
130/90-17 |
Front brakes
|
Double disc |
Diameter
|
236 mm (9.3 inches) |
Rear brakes
|
Single disc |
Diameter
|
236 mm (9.3 inches) |
Physical measures and capacities |
Dry weight
|
244.0 kg (537.9 pounds) |
Weight incl. oil, gas, etc
|
266.0 kg (586.4 pounds) |
Power/weight ratio
|
0.4918 HP/kg |
Fuel capacity
|
20.00 litres (5.28 US gallons) |
Oil capacity
|
3.50 litres (3.7 US quarts) |
Other specifications |
Starter
|
Electric |
Comments
|
Area code EU,UK,FR,IT,NR,SD,ST: frame range ZXT10A 000001 - ZXT10A 010800, engine range KZT10BE 019301 - KZT10BE 029300.
Area code WG,SD: frame range ZXT10A 000001 - ZXT10A 010800, engine range KZT10BG 000001 - KZT10BG 018000.
|
Update specs | Report missing specs or required updates. |
Maintenance and service specs * |
Engine oil
|
SAE 10W-40 |
Brake fluid
|
DOT 4 |
Spark plugs
|
NGK BR8ES, NGK BR8EIX |
Idle speed
|
1000 +/- 50 RPM |
Chain links
|
100 |
Sprockets
|
15/41 (front/rear) |
Tire pressure front
|
36 PSI (2.5 Bar or 250 kPa) |
Tire pressure rear
|
42 PSI (2.9 Bar or 290 kPa) |
Fork tube size
|
38 mm (1.5 inches) |
*) Always verify maintenance and service data with the bike owner's manual. |
