General information |
|
Model
|

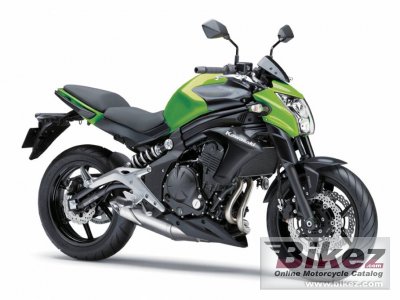

Kawasaki ER-6nL (LAMS) ABS |
|
Year
|
2013 |
|
Category
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
649.0 ccm (39.60 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
71.1 HP (51.9 kW)) @ 8500 RPM |
|
Torque
|
64.0 Nm (6.5 kgf-m or 47.2 ft.lbs) @ 6500 RPM |
|
Compression
|
10.8:1 |
|
Bore x stroke
|
83.0 x 60.0 mm (3.3 x 2.4 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Valves (OHV) |
|
Ignition
|
Digital |
|
Lubrication system
|
Forced lubrication, semi-dry sump |
|
Cooling system
|
Liquid |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc, manual |
|
Driveline
|
Sealed chain |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
double-pipe perimeter-style frame |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
110 mm (4.3 inches) |
|
Front suspension
|
41 mm telescopic fork |
|
Rear suspension
|
Offset laydown single-shock with adjustable preload |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
160/60-ZR17 |
|
Front brakes
|
Double disc. Petal discs. Caliper: 2-piston. Optional ABS. |
|
Rear brakes
|
Single disc. Petal disc. Caliper: Single-piston. Optional ABS. |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
204.0 kg (449.7 pounds) |
|
Seat height
|
805 mm (31.7 inches) If adjustable, lowest setting. |
|
Overall height
|
1110 mm (43.7 inches) |
|
Overall length
|
2110 mm (83.1 inches) |
|
Overall width
|
770 mm (30.3 inches) |
|
Ground clearance
|
130 mm (5.1 inches) |
|
Wheelbase
|
1410 mm (55.5 inches) |
|
Fuel capacity
|
16.00 litres (4.23 US gallons) |
|
Other specifications |
|
Color options
|
Black, red/black, green/black |
|
Starter
|
Electric |
|
Instruments
|
Analogue-style tachometer uses white LED backlights for excellent visibility at night.. The multi-function LCD screen has blue backlighting. |
