General information |
|
Model name
|

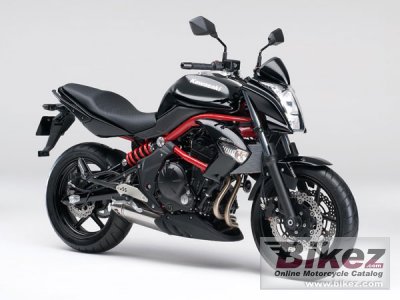

Kawasaki ER-4n ABS |
|
Year of manufacture
|
2013 |
|
Type
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
399.0 ccm (24.35 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Output
|
42.9 HP (31.3 kW)) @ 9400 RPM |
|
Torque
|
37.0 Nm (3.8 kgf-m or 27.3 ft.lbs) @ 7500 RPM |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Digital |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Digital CDI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Clutch
|
Wet, cable operated |
|
Driveline
|
O-Ring Chain |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Trellis |
|
Rake (fork angle)
|
25.0° |
|
Trail
|
120 mm (4.7 inches) |
|
Front suspension
|
41mm hydraulic cartridge fork |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Single shock, swingarm |
|
Rear wheel travel
|
125 mm (4.9 inches) |
|
Front tire
|
120/70-R17 |
|
Rear tire
|
160/60-R17 |
|
Front brakes
|
Double disc. ABS |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. ABS |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
203.0 kg (447.5 pounds) |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1100 mm (43.3 inches) |
|
Overall length
|
2100 mm (82.7 inches) |
|
Overall width
|
759 mm (29.9 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1410 mm (55.5 inches) |
|
Fuel capacity
|
15.50 litres (4.10 US gallons) |
|
Other specifications |
|
Color options
|
Black/red |
|
Instruments
|
analog speedometer. Digital meter with a bar graph tachometer. |
|
Light
|
two vertical headlights |
|
Comments
|
Sold in Japan. |
