Kawasaki's profilation of this bike |

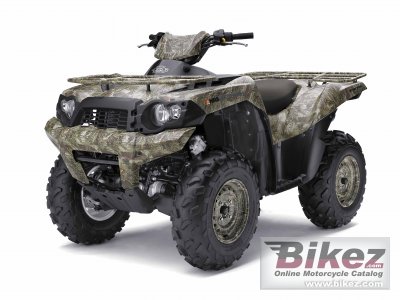

The officially licensed Kawasaki Brute Force® 750 4x4i NRA OUTDOORS™ special edition features the Advantage® MAX-I™ HD™ camouflage pattern to keep outdoorsmen off their prey’s radar |
General information |
Model
|
Kawasaki Brute Force 750 NRA Outdoors |
Year model
|
2009 |
Type
|
ATV |
Price as new | US$ 8949. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.9 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
Engine and transmission |
Engine size
|
749.0 ccm (45.70 cubic inches) |
Type of engine
|
V2, four-stroke |
Compression
|
8.8:1 |
Bore x stroke
|
85.0 x 66.0 mm (3.3 x 2.6 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection. Fuel Injection; (2) 36mm Mikuni throttle bodies |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Digital DC-CDI |
Cooling system
|
Liquid |
Gearbox
|
Automatic |
Transmission type
|
Shaft drive (cardan) (final drive) |
Chassis, suspension, brakes and wheels |
Frame type
|
Double-cradle, tubular steel |
Front suspension
|
Dual A-arm / 6.7 in. |
Rear suspension
|
Fully Independent, dual A-arm / 7.9 in. |
Front tire
|
25/8-12 (AT) |
Rear tire
|
25/10-12 (AT) |
Front brakes
|
Double disc |
Rear brakes
|
Sealed multidisc |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
296.1 kg (652.7 pounds) |
Seat height
|
902 mm (35.5 inches) If adjustable, lowest setting. |
Overall height
|
1232 mm (48.5 inches) |
Overall length
|
2195 mm (86.4 inches) |
Overall width
|
1166 mm (45.9 inches) |
Ground clearance
|
246 mm (9.7 inches) |
Wheelbase
|
1283 mm (50.5 inches) |
Fuel capacity
|
18.92 litres (5.00 US gallons) |
Other specifications |
Color options
|
Camouflage |
Starter
|
Electric |
Comments
|
4 wheel drive. 4 x 40W headlights, 5W taillight, 21W stoplight |
