General information |
|
Model name
|

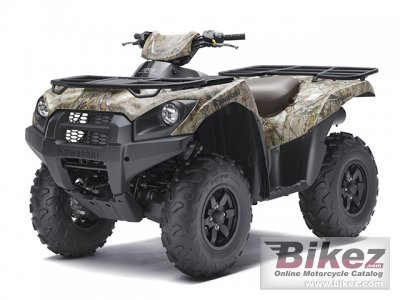

Kawasaki Brute Force 750 4x4i EPS Camo |
|
Year
|
2013 |
|
Category
|
ATV |
| Price as new | US$ 10599. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
749.0 ccm (45.70 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Compression
|
9.3:1 |
|
Bore x stroke
|
85.0 x 66.0 mm (3.3 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. DFI ; (2) 36mm Mikuni throttle bodies |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
TCBI with digital advance |
|
Cooling system
|
Liquid |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
Selectable four-wheel drive with Variable Front Differential Control, shaft |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double-cradle, high-tensile tubular steel |
|
Front suspension
|
Double Wishbone/ 6.7 in. |
|
Rear suspension
|
Fully independent, dual A-arm / 7.5 in. |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Double disc. Discs with 2-piston calipers |
|
Diameter
|
200 mm (7.9 inches) |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
315.1 kg (694.6 pounds) |
|
Seat height
|
909 mm (35.8 inches) If adjustable, lowest setting. |
|
Overall height
|
1219 mm (48.0 inches) |
|
Overall length
|
2195 mm (86.4 inches) |
|
Overall width
|
1181 mm (46.5 inches) |
|
Ground clearance
|
239 mm (9.4 inches) |
|
Wheelbase
|
1285 mm (50.6 inches) |
|
Fuel capacity
|
18.93 litres (5.00 US gallons) |
|
Other specifications |
|
Color options
|
Realtree APG HD |
|
Starter
|
Electric |
|
Instruments
|
Speedometer, odometer, dual trip meters, fuel gauge, engine temp, clock, hour meter and 2WD/4WD icon, plus indicators for EPS, neutral, reverse, belt, and oil pressure. |
|
Light
|
35W headlights, 5W taillight, 21W stoplight |
|
Factory warranty
|
1 year |
