General information |
|
Model name
|

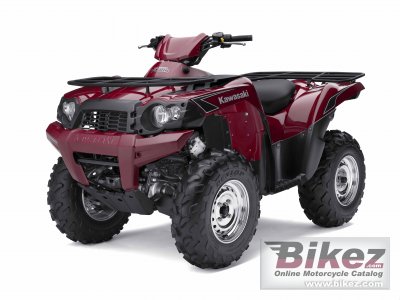

Kawasaki Brute Force 750 4x4i |
|
Year of manufacture
|
2009 |
|
Type
|
ATV |
|
Rating
|
3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Engine size
|
749.0 ccm (45.70 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Compression
|
8.8:1 |
|
Bore x stroke
|
85.0 x 66.0 mm (3.3 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital DC-CDI |
|
Cooling system
|
Liquid |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double-cradle, tubular steel |
|
Front suspension
|
Dual A-arm / 6.7 in. |
|
Rear suspension
|
Fully Independent, dual A-arm / 7.9 in. |
|
Front tire
|
25/8-12 (AT) |
|
Rear tire
|
25/10-12 (AT) |
|
Front brakes
|
Double disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Rear brakes
|
Sealed multidisc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
296.1 kg (652.7 pounds) |
|
Seat height
|
904 mm (35.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1232 mm (48.5 inches) |
|
Overall length
|
2195 mm (86.4 inches) |
|
Overall width
|
1166 mm (45.9 inches) |
|
Ground clearance
|
246 mm (9.7 inches) |
|
Wheelbase
|
1285 mm (50.6 inches) |
|
Fuel capacity
|
18.92 litres (5.00 US gallons) |
|
Other specifications |
|
Color options
|
Woodsman Green, Sunbeam Red, Lime Green, Super Black and Dark Royal Red |
|
Starter
|
Electric |
