General information |
|
Model name
|

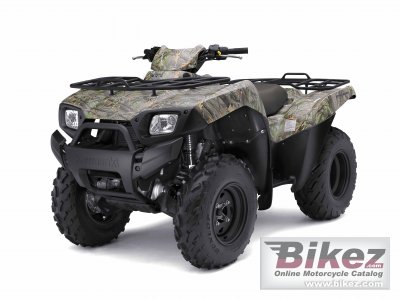

Kawasaki Brute Force 650 4x4 Camo |
|
Year model
|
2009 |
|
Type
|
ATV |
| Price as new | US$ 6899. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
633.0 ccm (38.63 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Compression
|
9.9:1 |
|
Bore x stroke
|
80.0 x 63.0 mm (3.1 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. 2 Keihin CVKR-D32 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Double-cradle, tubular steel |
|
Front suspension
|
Dual A-Arms, two shocks with five-way preload adjustment / 6.7 in. |
|
Rear suspension
|
Dual A-Arms, two shocks with five-way preload adjustment / 7.9 in. |
|
Front tire
|
25/8-12 (AT) |
|
Rear tire
|
25/10-12 (AT) |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Sealed multidisc. Sealed, oil-bathed, multi-disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
294.1 kg (648.3 pounds) |
|
Overall length
|
2195 mm (86.4 inches) |
|
Ground clearance
|
246 mm (9.7 inches) |
|
Wheelbase
|
1285 mm (50.6 inches) |
|
Fuel capacity
|
20.43 litres (5.40 US gallons) |
|
Other specifications |
|
Color options
|
Camouflage green and brown |
|
Starter
|
Electric |
