| General information |
|---|

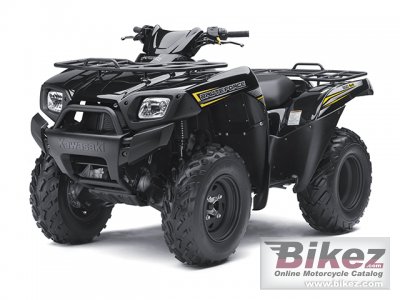

| Model: | Kawasaki Brute Force 650 4x4 |
| Year: | 2013 |
| Category: | ATV |
| Price as new: | US$ 7799. MSRP depends on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 633.0 ccm (38.63 cubic inches) |
| Engine type: | V2, four-stroke |
| Compression: | 9.9:1 |
| Bore x stroke: | 80.0 x 63.0 mm (3.1 x 2.5 inches) |
| Fuel system: | Carburettor. (2) Keihin CVKR-D32 |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | DC-CDI |
| Cooling system: | Liquid |
Transmission type,
final drive: | Shaft drive (cardan) |
| Driveline: | Selectable four-wheel drive with Variable Front Differential Control, shaft |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double cradle, high-tensile tubular steel |
| Front suspension: | MacPherson / 6.7 in. |
| Rear suspension: | Aluminum swingarm and single shock / 7.2 in. |
| Front tire: | 25/8-12 |
| Rear tire: | 25/10-12 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 294.1 kg (648.3 pounds) |
| Seat height: | 861 mm (33.9 inches) If adjustable, lowest setting. |
| Overall length: | 2184 mm (86.0 inches) |
| Overall width: | 1212 mm (47.7 inches) |
| Ground clearance: | 229 mm (9.0 inches) |
| Wheelbase: | 1293 mm (50.9 inches) |
| Fuel capacity: | 18.17 litres (4.80 gallons) |
| Other specifications |
|---|
| Color options: | Super Black |
| Starter: | Electric |
| Instruments: | Speedometer, odometer, dual trip meters, clock, hour meter, fuel gauge, 2x4 / 4x4 indicator light, neutral indicator light, reverse indicator light, low fuel warning light, low oil warning light |
| Light: | (2) 45W headlights, taillight, brake light |
| Factory warranty: | 1 year |
