| General information |
|---|

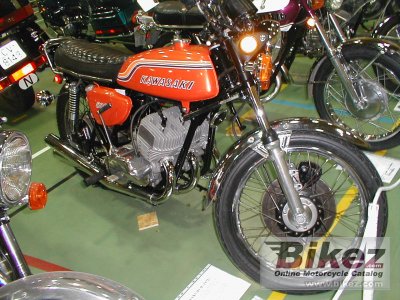

| Model | Kawasaki 500 H 1 Mach III |
| Year | 1972 |
| Category | Classic |
| Rating | 3.7 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement | 499.0 ccm (30.45 cubic inches) |
| Engine type | In-line three, two-stroke |
| Power | 58.0 HP (42.3 kW)) @ 7750 RPM |
| Torque | 56.0 Nm (5.7 kgf-m or 41.3 ft.lbs) @ 7000 RPM |
| Top speed | 186.0 km/h (115.6 mph) |
| 1/4 mile (0.4 km) | 12.40 seconds |
| Compression | 6.8:1 |
| Bore x stroke | 60.0 x 58.8 mm (2.4 x 2.3 inches) |
| Fuel system | Carburettor. 3 x Mikuni VM28SC |
| Fuel control | Port control |
| Ignition | CDI |
| Lubrication system | Injectolube, automatic pressurized injection |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multi-disc |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type | Double tubular steel cradle |
| Front suspension | Telescopic hydraulic forks |
| Rear suspension | Dual shocks, swing arm |
| Front tire | 3.25-19 |
| Rear tire | 4.00-18 |
| Front brakes | Single disc |
| Diameter | 200 mm (7.9 inches) |
| Rear brakes | Expanding brake |
| Diameter | 180 mm (7.1 inches) |
| Physical measures and capacities |
|---|
| Dry weight | 174.0 kg (383.6 pounds) |
| Weight incl. oil, gas, etc | 210.0 kg (463.0 pounds) |
| Power/weight ratio | 0.3333 HP/kg |
| Wheelbase | 1400 mm (55.1 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Other specifications |
|---|
| Starter | Kick |
