| General information |
|---|

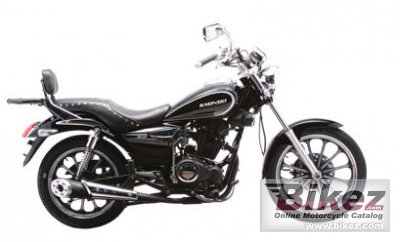

| Model: | Kasinski Mirage 150 |
| Year: | 2010 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 149.40 ccm (9.12 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 14.40 HP (10.5 kW)) @ 8500 RPM |
| Bore x stroke: | 62.0 x 49.5 mm (2.4 x 1.9 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Carburettor. PZ17 |
| Ignition: | CDI |
| Cooling system: | Oil & air |
| Gearbox: | 5-speed |
| Clutch: | Wet Multi-Plate Type |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic |
| Rear suspension: | Swing Arm |
| Front tyre: | 110/90-16 |
| Rear tyre: | 130/90-M15 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 125.0 kg (275.6 pounds) |
| Power/weight ratio: | 0.1152 HP/kg |
| Seat height: | 700 mm (27.6 inches) If adjustable, lowest setting. |
| Overall height: | 1,100 mm (43.3 inches) |
| Overall length: | 2,160 mm (85.0 inches) |
| Overall width: | 800 mm (31.5 inches) |
| Ground clearance: | 140 mm (5.5 inches) |
| Wheelbase: | 1,400 mm (55.1 inches) |
| Fuel capacity: | 13.00 litres (3.43 gallons) |
| Other specifications |
|---|
| Color options: | Black, blue, burgundy |
| Starter: | Electric & kick |
| Comments: | Brazilian brand. |
