General information |
|
Model
|

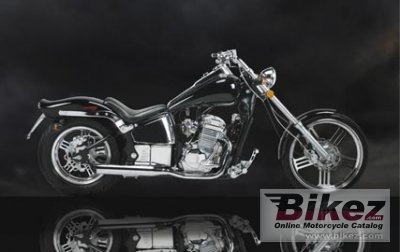

Johnny Pag Spyder |
|
Year model
|
2009 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 4699. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
300.0 ccm (18.31 cubic inches) |
|
Type of engine
|
Two cylinder boxer, four-stroke |
|
Effect
|
23.8 HP (17.4 kW)) @ 6500 RPM |
|
Torque
|
18.5 Nm (1.9 kgf-m or 13.6 ft.lbs) @ 6500 RPM |
|
Bore x stroke
|
57.0 x 53.0 mm (2.2 x 2.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Dual 26mm Keihin Vacuum Carburetor |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Forced Lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiplate oil bath |
|
Fuel consumption
|
3.61 litres/100 km (27.7 km/l or 65.16 mpg) |
|
Greenhouse gases
|
83.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
42.0° |
|
Front suspension
|
39 mm forks |
|
Rear suspension
|
Dual shocks (fully-adjustable) |
|
Front tire
|
80/90-21 |
|
Rear tire
|
160/90-18 |
|
Front brakes
|
Double disc. Twin-piston calipers |
|
Rear brakes
|
Single disc. Twin-piston calipers |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
163.3 kg (360.0 pounds) |
|
Seat height
|
508 mm (20.0 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
584 mm (23.0 inches) If adjustable, highest setting. |
|
Ground clearance
|
152 mm (6.0 inches) |
|
Wheelbase
|
1854 mm (73.0 inches) |
|
Other specifications |
|
Color options
|
Solid Black, Black w/silver flames, Red w/silver flames, Blue w/silver flames, Silver w/silver flames |
|
Starter
|
Electric |
|
Comments
|
Also called JPM Spyder 300. |
