General information |
|
Model
|

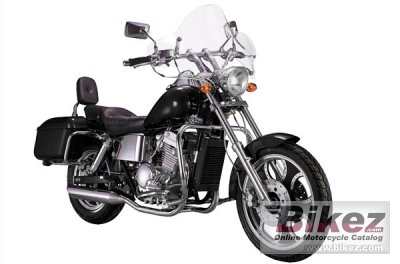

Johnny Pag Raptor |
|
Year model
|
2010 |
|
Type
|
Touring |
| Price as new | US$ 3399. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
300.0 ccm (18.31 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Effect
|
23.8 HP (17.4 kW)) @ 6500 RPM |
|
Torque
|
18.5 Nm (1.9 kgf-m or 13.6 ft.lbs) @ 6500 RPM |
|
Compression
|
10.2:1 |
|
Bore x stroke
|
57.0 x 53.0 mm (2.2 x 2.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. 2 x 26mm Keihin Vacuum Carburetor |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Forced Lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Fuel consumption
|
3.61 litres/100 km (27.7 km/l or 65.16 mpg) |
|
Greenhouse gases
|
83.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
36.0° |
|
Front suspension
|
37 mm forks |
|
Rear suspension
|
Dual shocks (fully-adjustable) |
|
Front tire
|
90/90-18 |
|
Rear tire
|
130/90-15 |
|
Front brakes
|
Double disc. 2-piston calipers |
|
Rear brakes
|
Single disc. 2-piston calipers |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
163.3 kg (360.0 pounds) |
|
Seat height
|
660 mm (26.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
152 mm (6.0 inches) |
|
Wheelbase
|
1575 mm (62.0 inches) |
|
Fuel capacity
|
15.89 litres (4.20 US gallons) |
|
Other specifications |
|
Color options
|
Solid Black, Solid Burgundy, Solid Grey |
|
Comments
|
Also called JPM Raptor 300. |
