| Johnny Pag's profilation of this bike |
| Our line of 300cc motorcycles are designed to look good and be affordable and all of our bikes are full sized. We have been building this line of bikes since early 2006 and have had a great response all over the world. |
|
General information |
|
Motorcycle name
|

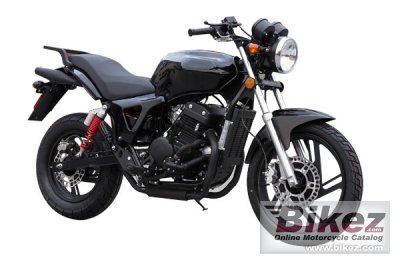

Johnny Pag FX-3 |
|
Model year
|
2010 |
|
Category
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
300.0 ccm (18.31 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Power output
|
23.8 HP (17.4 kW)) |
|
Torque
|
18.5 Nm (1.9 kgf-m or 13.6 ft.lbs) |
|
Compression
|
10.2:1 |
|
Bore x stroke
|
57.0 x 53.0 mm (2.2 x 2.1 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Dual 26mm Keihin Vacuum carburetor |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiplate oil bath |
|
Fuel consumption
|
3.61 litres/100 km (27.7 km/l or 65.16 mpg) |
|
Greenhouse gases
|
83.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
35.0° |
|
Front suspension
|
33mm forks |
|
Rear suspension
|
Dual shocks |
|
Front tire
|
90/90-18 |
|
Rear tire
|
130/90-15 |
|
Front brakes
|
Single disc. 2-piston |
|
Rear brakes
|
Single disc. 2-piston |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
158.8 kg (350.0 pounds) |
|
Seat height
|
787 mm (31.0 inches) If adjustable, lowest setting. |
|
Ground clearance
|
152 mm (6.0 inches) |
|
Wheelbase
|
1499 mm (59.0 inches) |
|
Fuel capacity
|
15.89 litres (4.20 US gallons) |
|
Other specifications |
|
Color options
|
Solid Black, Solid Red |
|
Starter
|
Electric |
|
Comments
|
Also called JPM FX-3 and JPM FX/3. Factory in Orange Country, California. |
