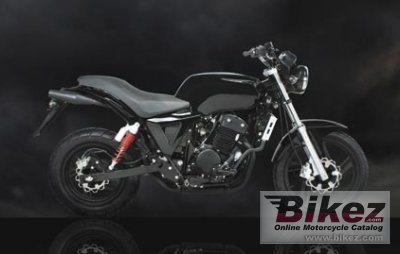

Johnny Pag FX-3 20092009 Johnny Pag FX-3 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | Johnny Pag FX-3 |
| Model year | 2009 |
| Category | Naked bike |
| Price as new | US$ 3399. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.0 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 300.0 ccm (18.31 cubic inches) |
| Engine type | Twin, four-stroke |
| Power output | 23.8 HP (17.4 kW)) |
| Torque | 18.5 Nm (1.9 kgf-m or 13.6 ft.lbs) |
| Compression | 10.2:1 |
| Bore x stroke | 57.0 x 53.0 mm (2.2 x 2.1 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Keihin |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | C.D.I. |
| Lubrication system | Forced Lubrication |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Multiplate oil bath |
| Fuel consumption | 3.61 litres/100 km (27.7 km/l or 65.16 mpg) |
| Greenhouse gases | 83.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Rake (fork angle) | 35.0° |
| Front suspension | 33mm forks |
| Rear suspension | Dual shocks |
| Front tire | 90/90-18 |
| Rear tire | 130/90-15 |
| Front brakes | Single disc. 2-piston calipers |
| Rear brakes | Single disc. 2-piston calipers |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 158.8 kg (350.0 pounds) |
| Seat height | 787 mm (31.0 inches) If adjustable, lowest setting. |
| Ground clearance | 152 mm (6.0 inches) |
| Wheelbase | 1499 mm (59.0 inches) |
| Fuel capacity | 15.89 litres (4.20 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
| Comments | Also called JPM FX-3. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Johnny Pag FX-3 discussion group or the general Johnny Pag discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this Johnny Pag. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2009 Johnny Pag FX-3 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this Johnny Pag bike | |
Offroad capabilities for the 2009 Johnny Pag FX-3:  (43.8 out of 100)Click here for complete rating. |
|
