Jinlun JL QT-50-4 20072007 Jinlun JL QT-50-4 specifications, pictures, reviews and rating |

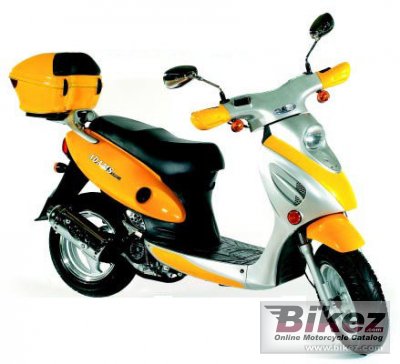

 2007 Jinlun JL QT-50-4. Picture credits - Jinlun. Submit more pictures. |
| General moped information | |
|---|---|
| Model name | Jinlun JL QT-50-4 |
| Year | 2007 |
| Category | Scooter |
| Rating | 3.0 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 49.5 ccm (3.02 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 2.3 HP (1.7 kW)) @ 7500 RPM |
| Torque | 3.0 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6000 RPM |
| Top speed | 45.0 km/h (28.0 mph) |
| Compression | 10.5:1 |
| Bore x stroke | 39.0 x 41.5 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor |
| Ignition | C.D.I |
| Lubrication system | Compress and Splash Combined Type |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Dry, Multi-Disc Type |
| Fuel consumption | 2.00 litres/100 km (50.0 km/l or 117.61 mpg) |
| Greenhouse gases | 46.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 85.0 kg (187.4 pounds) |
| Power/weight ratio | 0.0271 HP/kg |
| Overall height | 1030 mm (40.6 inches) |
| Overall length | 1870 mm (73.6 inches) |
| Overall width | 755 mm (29.7 inches) |
| Ground clearance | 120 mm (4.7 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Fuel capacity | 4.50 litres (1.19 US gallons) |
| Other specifications | |
| Color options | Red, Blue, Yellow |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 07 Jinlun JL QT-50-4 discussion group or the general Jinlun discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every mopedBikez has discussion forums for every moped. View comments, questions and answers at the 2007 Jinlun JL QT-50-4 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the moped's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Jinlun moped | |
Offroad capabilities for the 2007 Jinlun JL QT-50-4:  (38.0 out of 100)Click here for complete rating. You can also compare bikes. |
|
