| Jianshe's profilation of this bike |
| Red, purple, green, black, yellow |
|
General information |
|
Model name
|

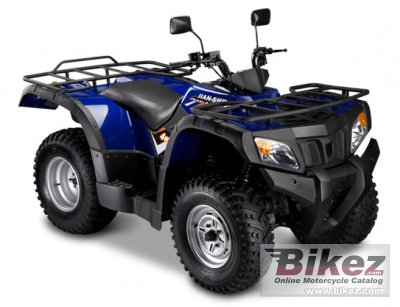

Jianshe JS400ATV |
|
Model year
|
2011 |
|
Category
|
ATV |
|
Rating
|
3.2 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
398.0 ccm (24.29 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power output
|
21.5 HP (15.7 kW)) @ 6500 RPM |
|
Torque
|
26.0 Nm (2.7 kgf-m or 19.2 ft.lbs) @ 5000 RPM |
|
Compression
|
10.0:1 |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Cooling system
|
Oil & air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
With revserse. Axle final drive. |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
270.0 kg (595.2 pounds) |
|
Power/weight ratio
|
0.0795 HP/kg |
|
Seat height
|
860 mm (33.9 inches) If adjustable, lowest setting. |
|
Overall length
|
1125 mm (44.3 inches) |
|
Overall width
|
1175 mm (46.3 inches) |
|
Wheelbase
|
2100 mm (82.7 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Electrical
|
12V 7Ah battery |
|
Comments
|
Made in China. |
