| Jianshe's profilation of this bike |
| World-class balance shaft engine features both low vibration and comfortable ride. |
| General information |
|---|

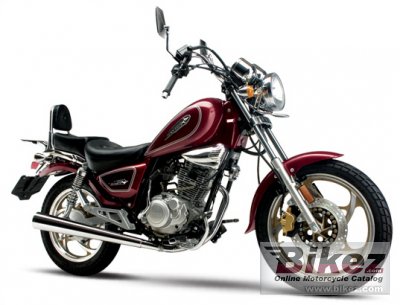

| Model: | Jianshe JS150-A-F3 |
| Year: | 2012 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 147.00 ccm (8.97 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 13.68 HP (10.0 kW)) @ 8000 RPM |
| Torque: | 13.20 Nm (1.3 kgf-m or 9.7 ft.lbs) @ 6000 RPM |
| Compression: | 10.5:1 |
| Bore x stroke: | 57.0 x 57.8 mm (2.2 x 2.3 inches) |
| Fuel system: | Carburettor |
| Ignition: | CDI |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet type, muti plate, hand operation |
| Chassis, suspension, brakes and wheels |
|---|
| Front tyre: | 90/90-18 |
| Rear tyre: | 110/90-18 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 155.0 kg (341.7 pounds) |
| Power/weight ratio: | 0.0883 HP/kg |
| Seat height: | 715 mm (28.1 inches) If adjustable, lowest setting. |
| Overall height: | 1,192 mm (46.9 inches) |
| Overall length: | 2,200 mm (86.6 inches) |
| Overall width: | 750 mm (29.5 inches) |
| Fuel capacity: | 12.00 litres (3.17 gallons) |
| Other specifications |
|---|
| Color options: | Black, red |
| Starter: | Electric & kick |
| Electrical: | 12V 8Ah battery |
| Comments: | Chinese bike |
