Jianshe JS125T-C 20082008 Jianshe JS125T-C specifications, pictures, reviews and rating |

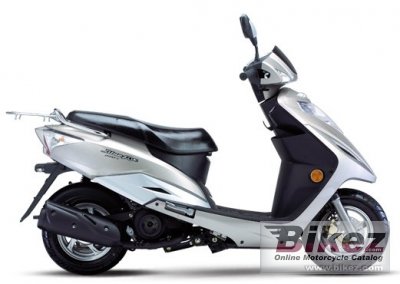

 2008 Jianshe JS125T-C. Picture credits - Jianshe. Submit more pictures. |
|
| General information | |
|---|---|
| Model name | Jianshe JS125T-C |
| Model year | 2008 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 125.0 ccm (7.63 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 6.0 HP (4.4 kW)) @ 7300 RPM |
| Torque | 8.3 Nm (0.8 kgf-m or 6.1 ft.lbs) @ 6000 RPM |
| Compression | 9.5:1 |
| Bore x stroke | 51.5 x 60.0 mm (2.0 x 2.4 inches) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 5-speed |
| Clutch | Wet automatic shoe clutch |
| Chassis, suspension, brakes and wheels | |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 111.0 kg (244.7 pounds) |
| Power/weight ratio | 0.0543 HP/kg |
| Seat height | 755 mm (29.7 inches) If adjustable, lowest setting. |
| Overall height | 1100 mm (43.3 inches) |
| Overall length | 1875 mm (73.8 inches) |
| Overall width | 670 mm (26.4 inches) |
| Ground clearance | 110 mm (4.3 inches) |
| Wheelbase | 1363 mm (53.7 inches) |
| Fuel capacity | 5.40 litres (1.43 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
