General information |
|
Motorcycle name
|

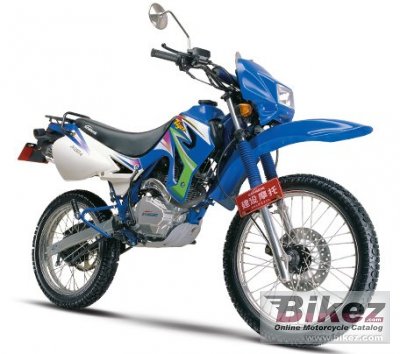

Jianshe JS125 GY4 |
|
Year model
|
2008 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.0 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
9.4 HP (6.8 kW)) @ 9000 RPM |
|
Torque
|
8.8 Nm (0.9 kgf-m or 6.5 ft.lbs) @ 7500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Clutch
|
Wet type,muti plate,hand operation |
|
Chassis, suspension, brakes and wheels |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
110.0 kg (242.5 pounds) |
|
Power/weight ratio
|
0.0853 HP/kg |
|
Seat height
|
875 mm (34.4 inches) If adjustable, lowest setting. |
|
Overall height
|
1180 mm (46.5 inches) |
|
Overall length
|
2020 mm (79.5 inches) |
|
Ground clearance
|
310 mm (12.2 inches) |
|
Wheelbase
|
1170 mm (46.1 inches) |
|
Fuel capacity
|
6.50 litres (1.72 US gallons) |
|
Other specifications |
|
Starter
|
Kick |
