| Jialing's profilation of this bike |
| These products are been delivered to Europe, United States, Asia, the Middle East, Russia, Africa etc. countries. We are expanding more cooperation partners all over the world. |
|
General information |
|
Motorcycle name
|

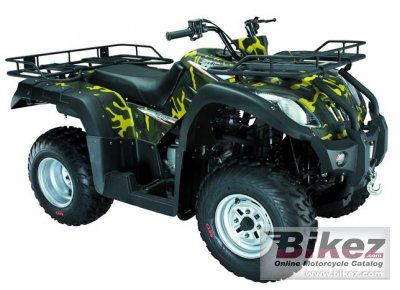

Jialing ATV |
|
Year
|
2011 |
|
Category
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
229.6 ccm (14.01 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
13.4 HP (9.8 kW)) |
|
Torque
|
15.0 Nm (1.5 kgf-m or 11.1 ft.lbs) |
|
Top speed
|
65.0 km/h (40.4 mph) |
|
Compression
|
8.7:1 |
|
Fuel system
|
Carburettor |
|
Cooling system
|
Air |
|
Fuel consumption
|
1.80 litres/100 km (55.6 km/l or 130.68 mpg) |
|
Greenhouse gases
|
41.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
22/7-10 |
|
Rear tire
|
22/10-10 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
220.0 kg (485.0 pounds) |
|
Power/weight ratio
|
0.0610 HP/kg |
|
Overall height
|
1120 mm (44.1 inches) |
|
Overall length
|
1960 mm (77.2 inches) |
|
Overall width
|
1010 mm (39.8 inches) |
|
Ground clearance
|
155 mm (6.1 inches) |
|
Fuel capacity
|
22.00 litres (5.81 US gallons) |
|
Other specifications |
|
Color options
|
Black/yellow |
|
Starter
|
Electric |
|
Comments
|
Chinese brand. |
