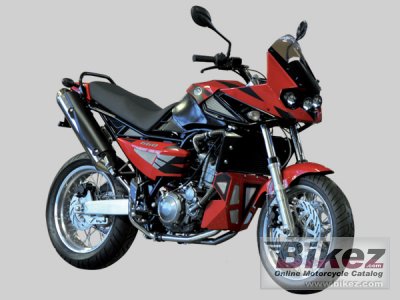

Jawa-CZ 660 20132013 Jawa-CZ 660 specifications, pictures, reviews and rating |
| Jawa-CZ' profilation of this bike |
| JAWA 660 Sportard is the direct successor of JAWA 650 Dakar motorcycle. Its individual (technical) features correspond exactly to the name of the bike : Sportard = Sports motard. |
| General information | |
|---|---|
| Model name | Jawa-CZ 660 |
| Year model | 2013 |
| Type | Super motard |
| Rating | 3.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 651.9 ccm (39.78 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 47.5 HP (34.6 kW)) @ 6500 RPM |
| Torque | 57.0 Nm (5.8 kgf-m or 42.0 ft.lbs) @ 5000 RPM |
| Top speed | 165.0 km/h (102.5 mph) |
| Compression | 9.7:1 |
| Bore x stroke | 100.0 x 83.0 mm (3.9 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Carburettor. Bing |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular |
| Front suspension | Paioli telescopic forks |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Bitubo shocks |
| Rear wheel travel | 170 mm (6.7 inches) |
| Front tire | 110/90-19 |
| Rear tire | 140/80-17 |
| Front brakes | Double disc. Floating two piston calipers |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Radial four piston |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 195.0 kg (429.9 pounds) |
| Power/weight ratio | 0.2434 HP/kg |
| Seat height | 860 mm (33.9 inches) If adjustable, lowest setting. |
| Wheelbase | 1518 mm (59.8 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Reserve fuel capacity | 1.50 litres (0.40 US gallons) |
| Other specifications | |
| Color options | Red/black, yellow/black |
| Starter | Electric |
| Carrying capacity | Top box, saddle bags |
| Comments | Rotax engine |
